PRESSURES TRANSMITTERS

27 Series

86 Series

93 Series

PRESSURE TRANSMITTERS SERIES 27, 86 and 93 use a piezo-resistive pressure sensor. It is a fully active Wheatstone Bridge of resistors diffused in a crystal silicone chip.

The direct conversion of the pressure into an electrical signal is achieved by a minute deflection of sensor which changes the resistance of the bridge with the applied stress. Changes in pressure can cause a corresponding change in the transmitter output in proportion to the bridge unbalance. A single electronic circuit supplies power to the sensor and receives its signal providing conversion into a standard 4-20 mA DC. The circuit card contains the span and zero adjustments.

TECHNICAL DATA
Measuring range from -1 up to 1000 bar
Accuracy <0.2% FS
Output 4 - 20 mA
I.S. approval EEx ia IIC T6
Protection IP67/IP68
Operating temperature -40C - +80C
Material AISI 316

Technical Specification

PRESSURES TRANSMITTERS

Measuring range from -0.5 bar up to +0.8 bar
Accuracy 0.2% FS
I.S. approval EEx ia IIC T6
Protection IP68
Operating temperature -40C - +80C

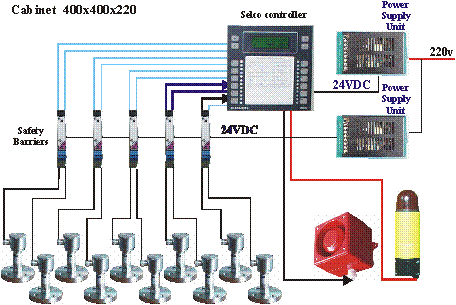

WIRINGS OF THE SYSTEM



SAMPLES OF THE SYSTEM
