ARPA RADAR SIMULATOR

The simulator according to the STCW-95/98 provides training in:

INSTRUCTOR CONSOLE

Training, recording of training, real-time and high-speed playback of the recorded exercises.

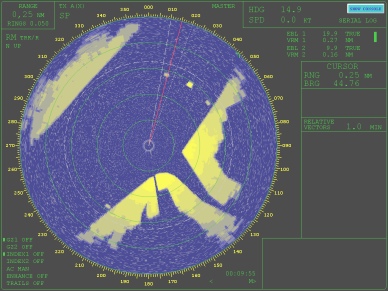

ARPA/RADAR SUBSYSTEM

Provides a simulation of a surface situation formed by the vessels, controlled by operators; the targets, controlled by the instructor and/or program-driven; sea marks; a coastline of particular area; radar observation interference.
The ARPA/Radar subsystem is equipped with 28" monitor.
The Control of a Plan position indicator is provided by the sensor control panel.

ECDIS SUBSYSTEM

Provide the following features: An indication of the own ship position on the electronic chart; Navigation, route planning and plotting. The Route safety check. The ECDIS subsystem is equipped with 21" monitor.

CONNING CONSOLE

Provides the ship control and indication of a course, speed and other navigational parameters. Indication of an external conditions and depth.

  • Simulated Interference - sea clutter, asynchronous interference, shadow sectors
  • Number of navigational marks - Up to 100
  • Number of targets - Up to 20
  • Number of own ships - From 2 to 6
  • Worldwide electronic database
  • Water area - 100 x 100
  • Displacement - From 1000 to 15 000 t
